Accurate working length determination is one of the most foundational steps in root canal therapy, yet it remains a common source of procedural error. An incorrect length can lead to under-instrumentation, missed canal anatomy, post-operative pain, or overextension of filling materials beyond the apex. Getting this measurement right sets the stage for every subsequent step in cleaning, shaping, and obturation.
Why Working Length Accuracy Matters
Working length defines the distance from a coronal reference point to the point at which instrumentation and obturation should terminate, ideally at or near the cementodentinal junction. Instrumenting short of this point risks leaving necrotic tissue and bacteria in the apical third, while instrumenting past it can damage the apical constriction, cause pain, and increase the risk of extrusion of irrigants or filling material into periapical tissues.
Radiographic vs. Electronic Apex Locator Methods
Traditional radiographic working length determination relies on a preoperative image with an initial file in place, followed by a verification film. While still useful, this method is subject to angulation distortion, superimposition of roots, and the inherent limitation of a two-dimensional image representing a three-dimensional canal system.

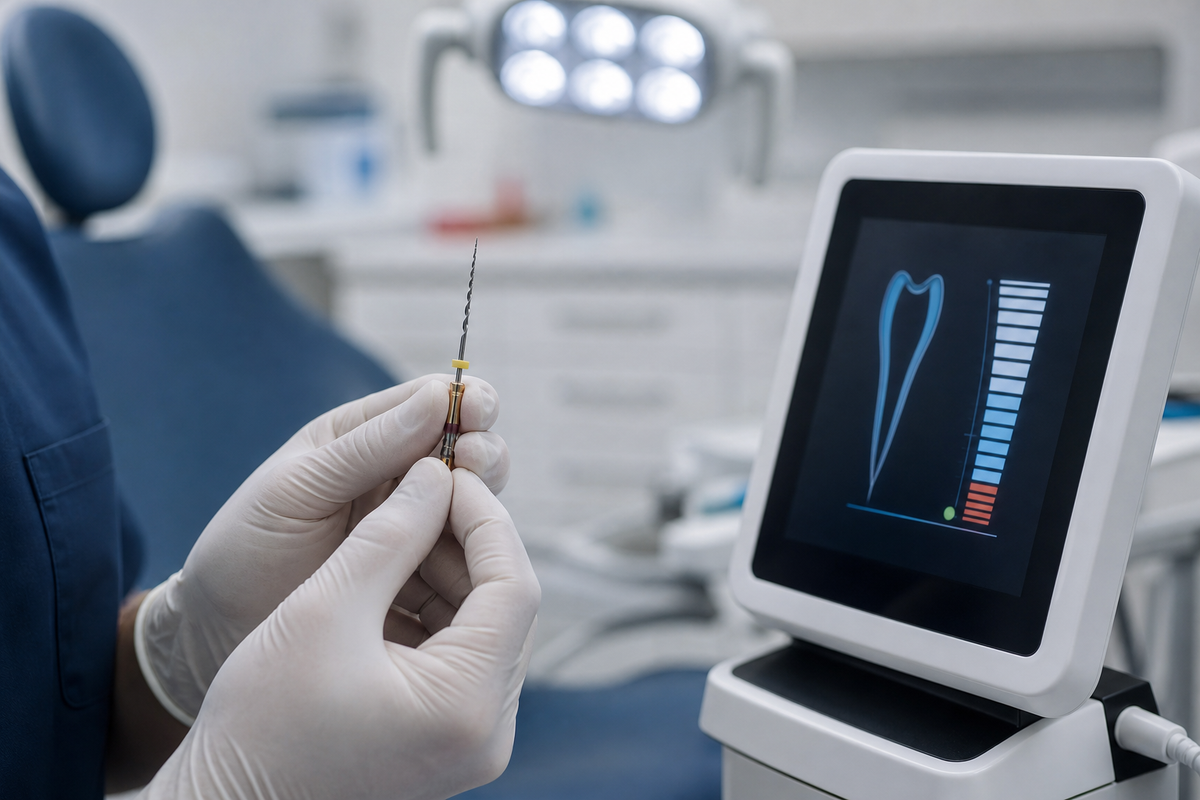

Electronic apex locators have become the clinical standard for improving accuracy, using impedance ratios to detect the position of the apical foramen independent of radiographic distortion. Most clinicians now combine both methods: an apex locator reading for real-time feedback during instrumentation, confirmed by a radiograph once a length has been established. This dual approach reduces the likelihood of both perforation and short fills.
Instrumentation and File Selection
Once working length is established, consistent file length and size tracking throughout instrumentation is essential. Many clinicians prefer stainless steel K-files for initial negotiation and glide path establishment due to their rigidity and tactile feedback in narrow or calcified canals, while H-files are often favored for filing motions during canal shaping because of their more aggressive cutting flutes. Keeping a range of file lengths (21mm, 25mm, and 31mm) and sizes on hand allows the operator to match file selection to tooth position and canal length without compromising the established working length mid-procedure.
Rubber stops should be checked and reset at every file change, and working length should be reconfirmed if resistance patterns change unexpectedly, as this can indicate a ledge, blockage, or previously undetected canal curvature.
Common Errors to Avoid
- Relying solely on a preoperative radiograph without electronic confirmation, especially in curved or overlapping roots
- Failing to re-establish patency and length after encountering calcification or a ledge
- Allowing rubber stops to slip during instrument exchanges, leading to inconsistent reference points
- Not accounting for canal curvature when measuring true working length versus straight-line file length
Final Thoughts
Working length determination is a small step in terms of time but a large determinant of long-term endodontic success. Combining radiographic verification with electronic apex locator readings, paired with disciplined file tracking, remains the most reliable way to protect the apical anatomy while ensuring thorough debridement of the canal system.
